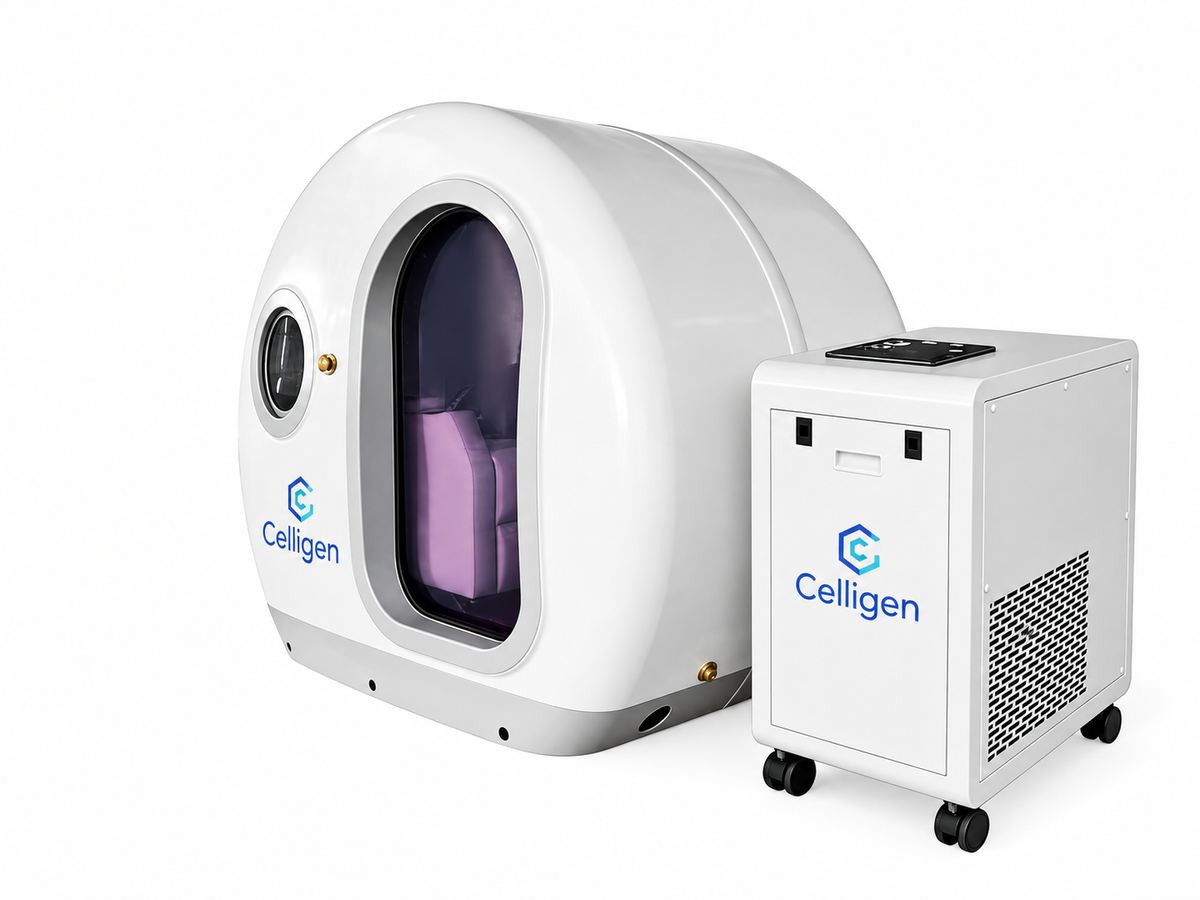

Celligen Shell Hard Shell Hyperbaric Oxygen Chamber

• 1 and 2 person model options
• The rigid shell compartment supports up to 2.0 ATA (approx. 2 bar), suitable for high-intensity oxygen therapy protocols.
• Adjustable pressure range from 1.1 to 2.0 ATA, adaptable for all clinical and wellness needs.

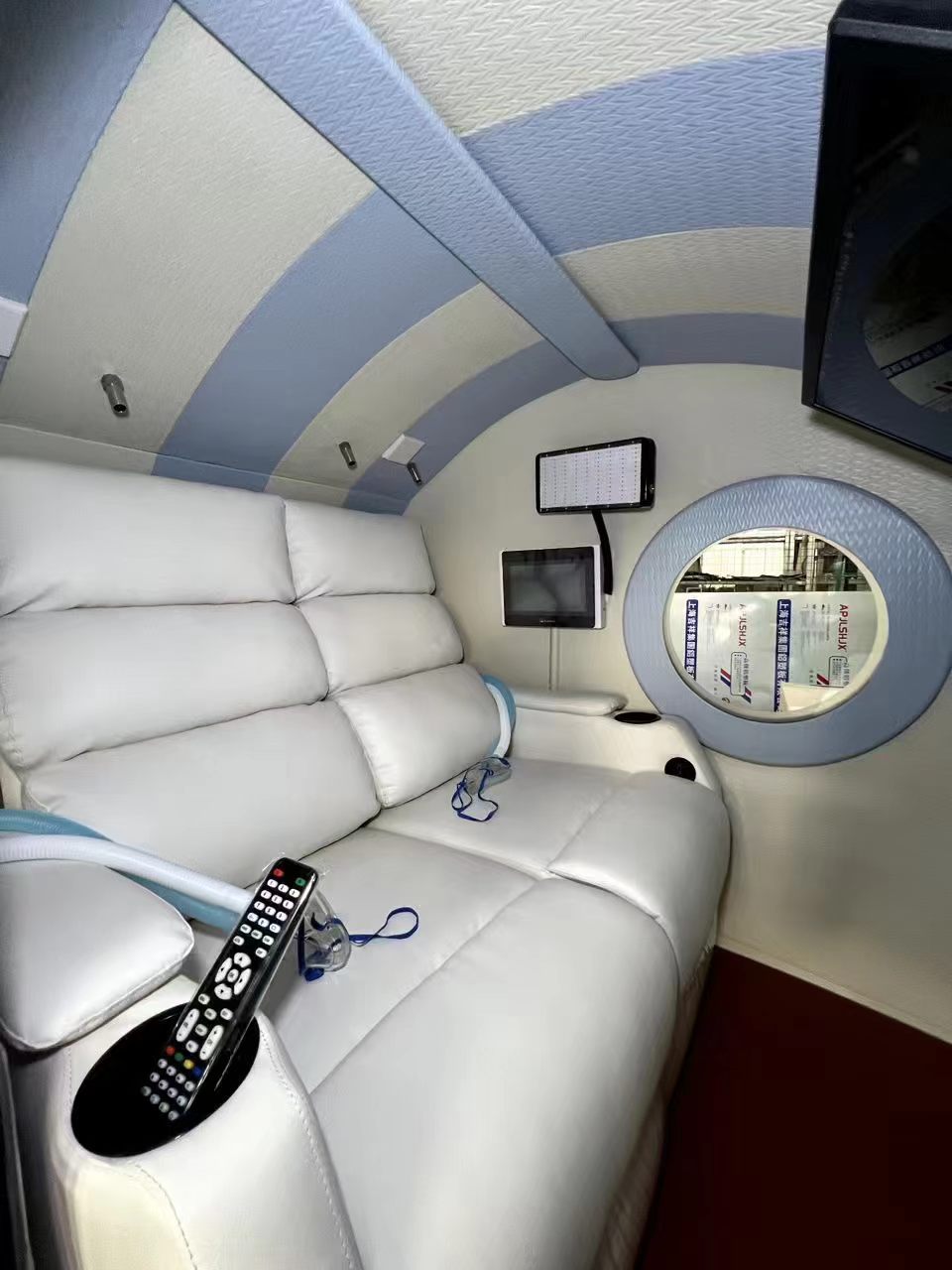

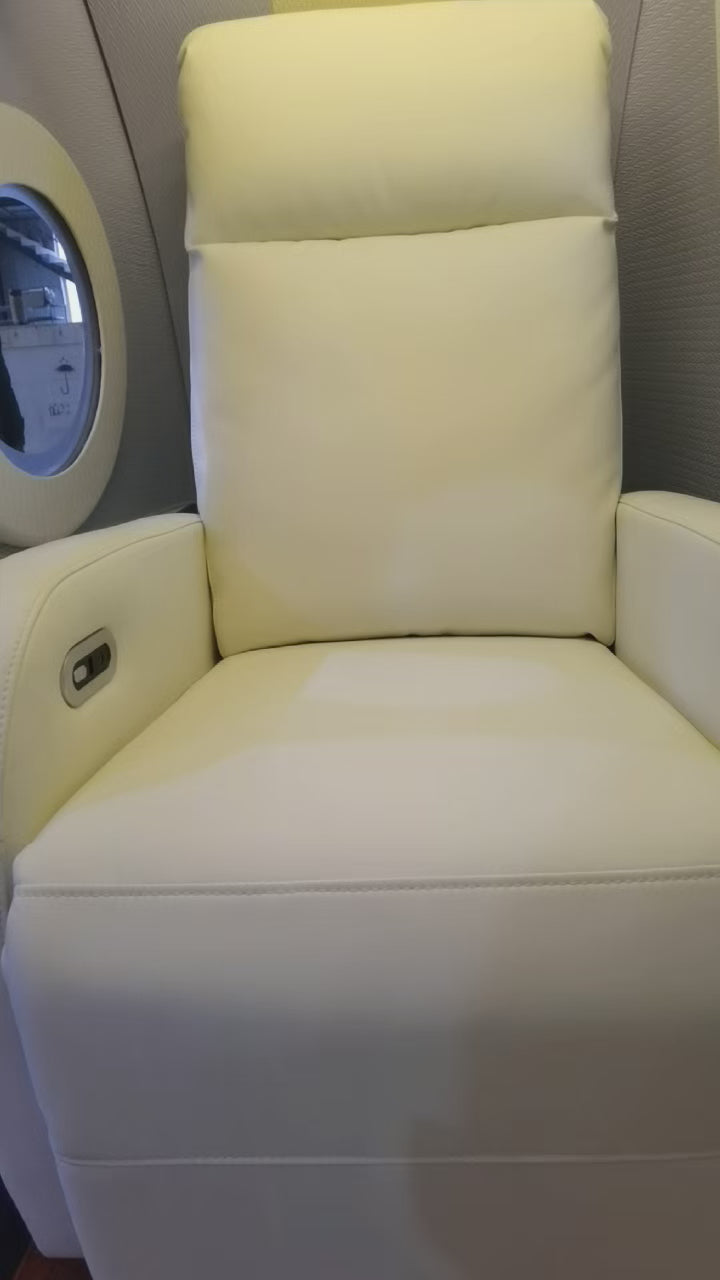

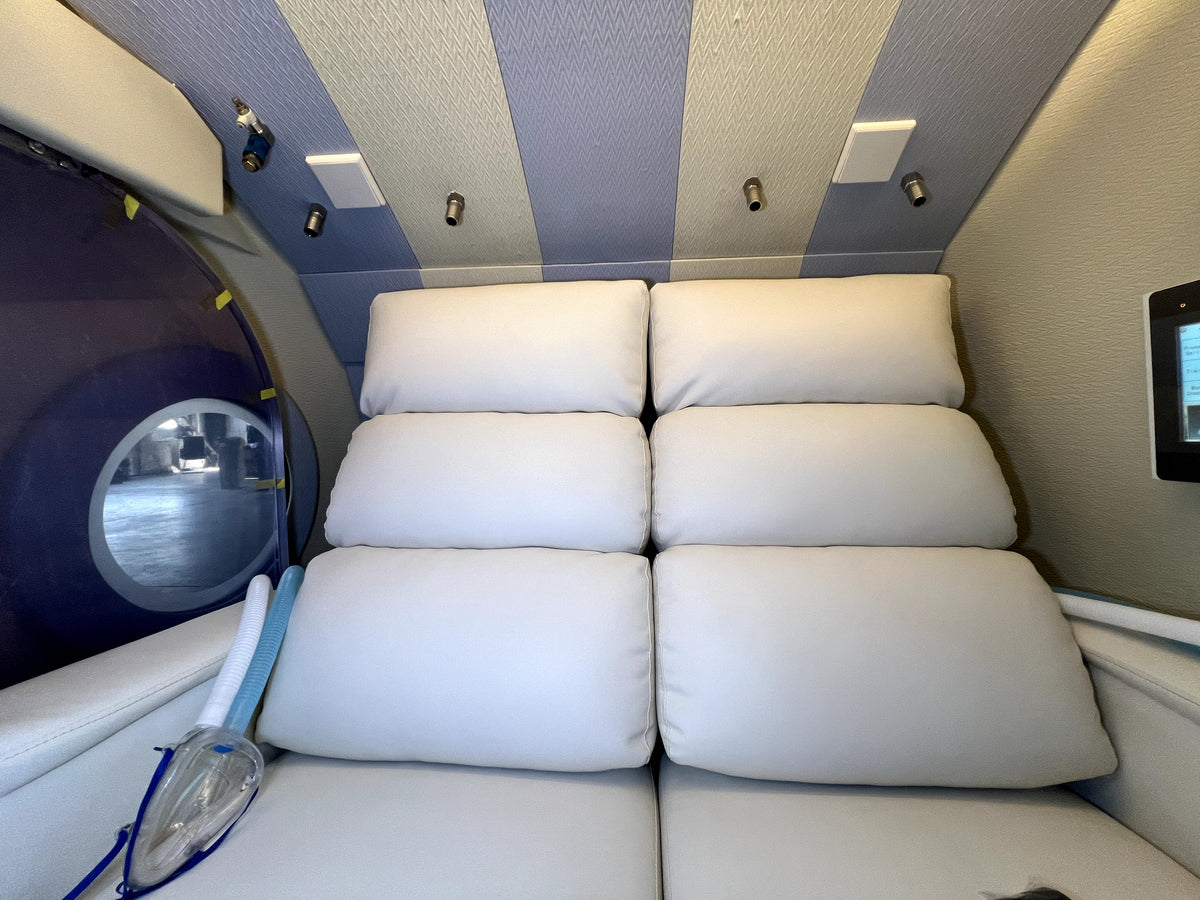

• Includes aviation-grade zero-gravity electric sofa (the same as used in premium airlines), adjustable to any comfortable position (seated or reclined).
• Multi-level filtration can be used before entering the chamber, reduces PM2.5 to unit level and eliminates particles, contaminants, and pathogens.
• Negative ion technology: up to 2,000,000 ions/cm³
• Diffused oxygen ≤25% to meet fire safety regulations.
• Integrated cooling system for stable temperature.
• Quiet design: interior noise ≤20 dB, external unit ≤50 dB.
• Stable humidity at approx. 26%.

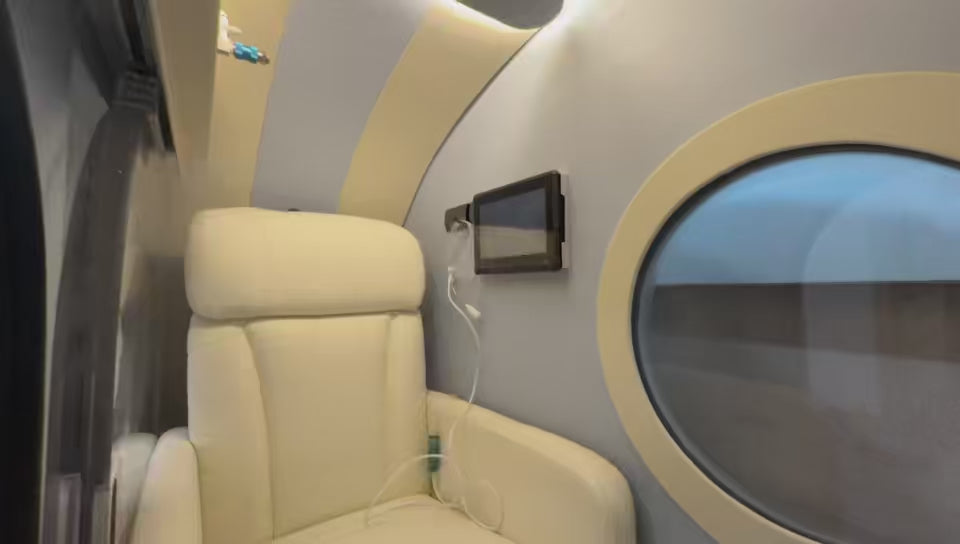

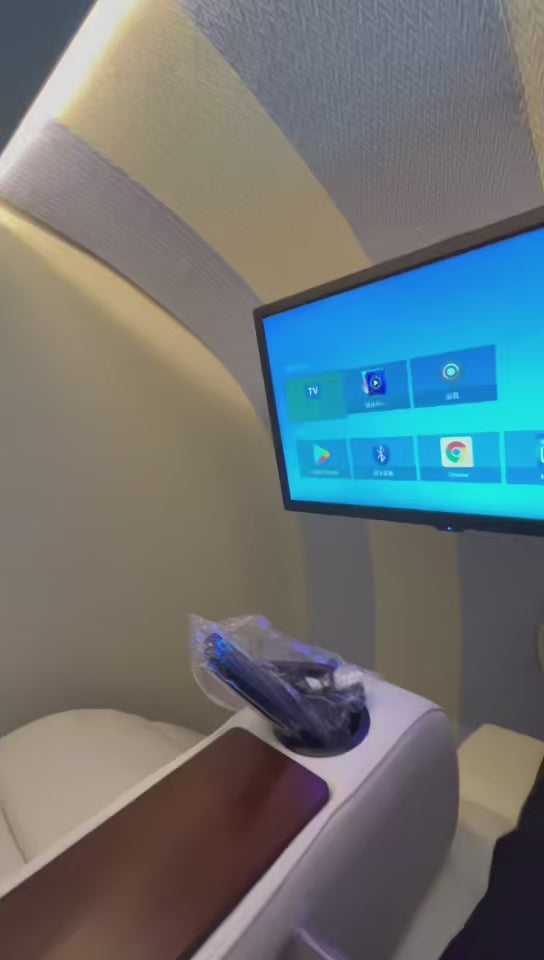

• Dual touch screens (inside and outside) for synchronized control.
• Intuitive interface with preset modes (Level A beginner to D advanced) and manual adjustment.
• Wireless intercom system for real-time monitoring.
• Triple safety relief valves and automatic release system.
• One-button emergency stop and quick-release valve.

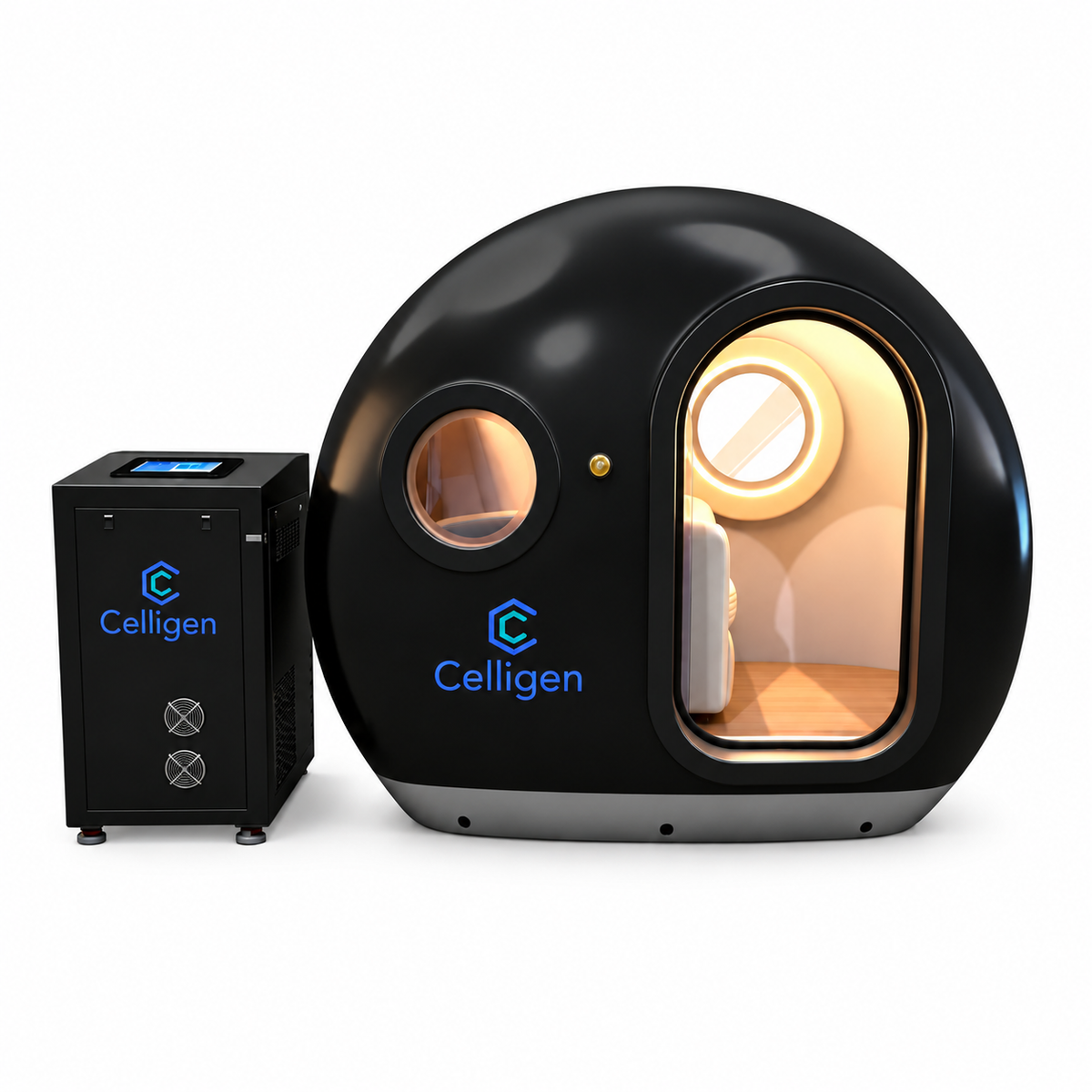

• Configurations: 1-seat / 2-seat
• Chamber Construction: Aviation-grade magnesium-aluminium alloy
• 1-seat Chamber Dimensions: 2000 × 980 × 1700 mm
• 1-seat Chamber Net / Gross Weight: 330 kg / 550 kg
• 1-seat Package Dimensions: 2200 × 1120 × 2000 mm

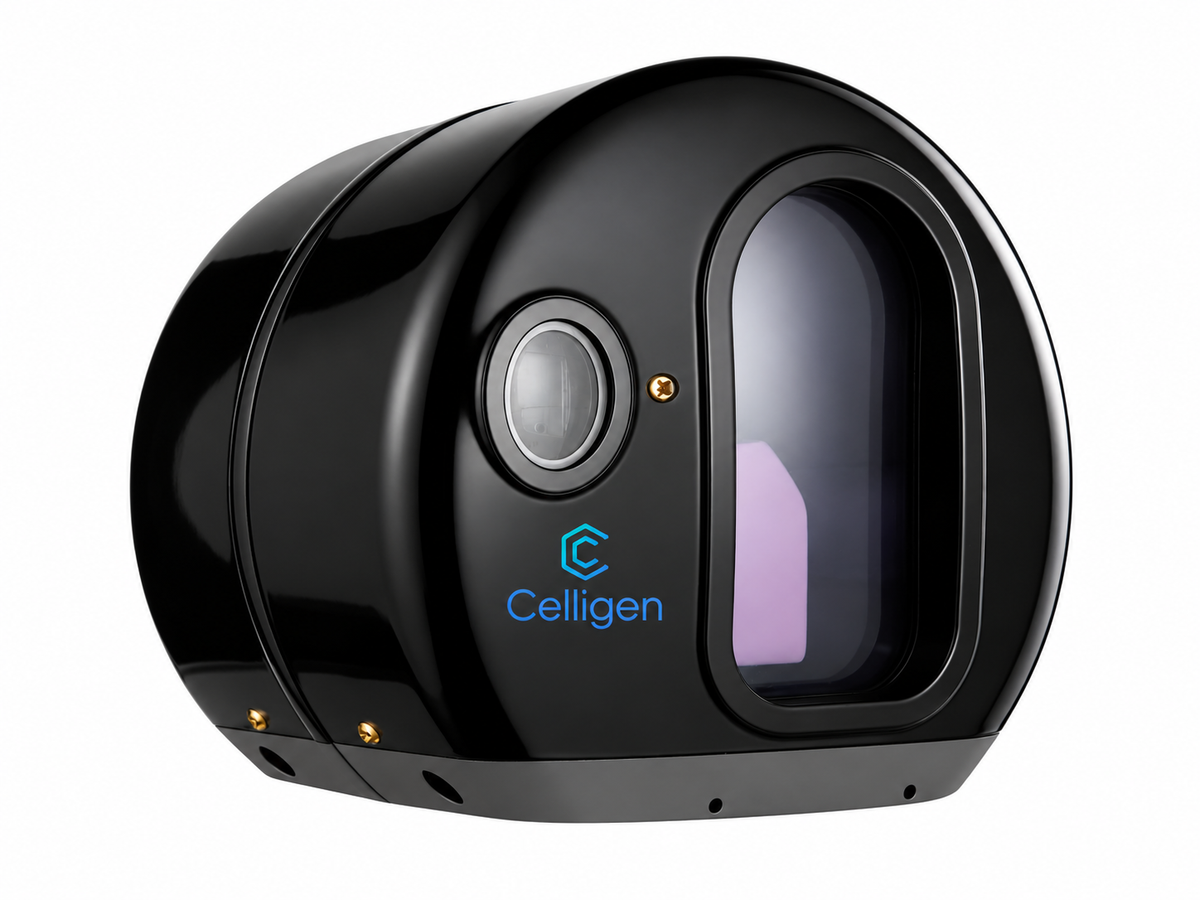

• 2-seat Chamber Dimensions: 2000 × 1480 × 1700 mm
• 2-seat Chamber Net / Gross Weight: 380 kg / 780 kg
• 2-seat Package Dimensions: 2200 × 1800 × 2000 mm
• Operating Pressure Range: 1.1 – 2.0 ATA
• Maximum Operating Pressure: 2.0 ATA
• Main Unit: Integrated 3-in-1 main unit
• Main Unit Dimensions: 570 × 520 × 905 mm
• Main Unit Net / Gross Weight: 85 kg / 165 kg
• Main Unit Package Dimensions: 1060 × 610 × 1060 mm
• Rated Power: 1-seat: 2400W / 2-seat: 3200W
• Oxygen Generation: PSA technology
• Oxygen Production Flow: 15 L/min
• Oxygen Concentration: 90% -±3%
• Oxygen Outlet Pressure: 100–140 kPa
• Control: Fixed intelligent touch screen
• Air Conditioning: Water-cooled
• Temperature Control Range: 15–30°C
• Interior Noise: ≤20 dB
• Main Unit Noise: ≤50 dB
• Interior Diffused Oxygen Concentration: ≤25%
• Interior Humidity: Approx. 26%
• Negative ion technology: up to 2,000,000 ions/cm³
• Filtration / Disinfection: 5 μm medical-grade filtration & negative ion disinfection
• Colour Options: Customisable on request
• Integrated 3-in-1 Main Unit: Standard

Standard Configuration

• Aviation-grade zero-gravity electric sofa
• Basic oxygen inhalation device — one set per seat
• Internal and external touch control panels
• PC endurance plate door
• 5 μm medical-grade filtration & negative ion disinfection system
• Built-in air dehumidifier
• Integrated 3-in-1 main unit comprising compressor, PSA oxygen generator and water-cooled air-conditioning system

Additional Safety Equipment

• Manual pressure-relief valve
• Automatic pressure-relief valves
• Emergency pressure-relief valve
• Pressure gauge
• Internal/external communication system

Optional Additional Configuration

• BIBS internal breathing system
• Red light panel
• Upgraded integrated main-unit configuration
